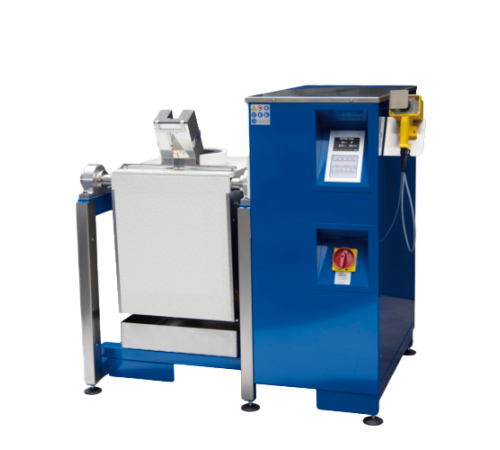

Tilting Furnace TF-6000 Indutherm

These machine are designed for…

• for the melting of large quantities, for example in the recycling sector
• for the casting of large parts into shellcasting moulds

Our tilting furnaces are mainly used in two areas:

1.for melting down large quantities of metal such as antique gold or manufacturing residues like casting waste, scrap or swarf. 30 kW output and low-frequency tuning means fast melting – even for large volumes – and excellent through-mixing.

2.for casting large, heavy components e.g. after slip casting

TF-1200 INDUTHERM MELTING FURNASE

These machine are designed for…

• for the melting of large quantities, for example in the recycling sector
• for the casting of large parts into shellcasting moulds

Our tilting furnaces are mainly used in two areas:

1.for melting down large quantities of metal such as antique gold or manufacturing residues like casting waste, scrap or swarf. 30 kW output and low-frequency tuning means fast melting – even for large volumes – and excellent through-mixing.

2.for casting large, heavy components e.g. after slip casting

Because of the large capacity and the potentially large weight, at the TF 6000  the inductor/crucible unit is tilted by motor drive. Use of a joystick enables the tilting process to be controlled easily and sensitively. The joystick unit may remain at the machine, but can also be taken out and to be used as a remote control for casting in safe distance. The 12,000 ccm usable volume of the crucible gives the TF 12000 an enormous capacity. The output of the newly-developed generator is of equally ample dimensions:40 kW!

The generators (40 kW at TF 6000 ) are fitted with a 32-bit micro-controller and are controlled via a console with an LCD display with full text readout.

Sophisticated electromagnetic shielding ensures that the induction generated loses as little energy as possible. This way also the electrosmog load for users is drastically reduced.

PERFORMANCE:

power max. / electrical connection: 15-40kW, 3 x 400V

Maximum temperature: 1500 degree C (40 kW)

Capacity: 90 kg au ct*

Temperature Control: Display

Tilting by lever:

Tilting by wheel: ο

reduction for wheel: ο

Weight: 220 KG

Dimensions w x d x h: 700 x 600 (902 with table) x 1500 mm
