VC-450 Indutherm vacuum pressure casting

categories

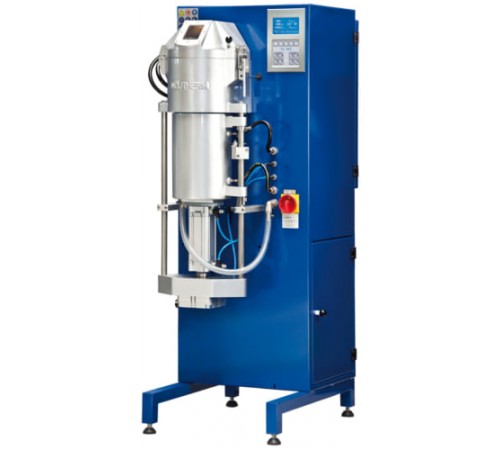

VC-450 Vacuum Pressure Indutherm

  • Brands Indutherm
  • Product Code: C1020107
  • Availability: In Stock
VC-450 Vacuum Pressure Indutherm This machine is designed for: casting of jewellery and other filigree parts for permanent use for certified production processes Constructed on base of the VC 400, the VC 450 is equipped with a completely new generato...

VC-450 Vacuum Pressure Indutherm



This machine is designed for:

  • casting of jewellery and other filigree parts
  • for permanent use
  • for certified production processes

Constructed on base of the VC 400, the VC 450 is equipped with a completely new generator and a program control system with LCD display.
With help of the step-by-step display information and many automatic functions the handling of the machine is very easy even for less experienced users. The program control for 25 different casting cycles allows reproducible and consistent casting results.

Specification:

performance

performance max. / electrical connection

4.5 kW 3x400 V

maximum temperature

1400° C

capacity

crucible volume

 170 ccm = 2,5 kg Au 18 ct *

for use of flasks up to

130 mm / 240 mm H

handling+control

maximum pressure

1,5 bar

programs

20

program control

LCD-Display, full text display

Size

19.5″ x 30″x 57″

Weight

265 lbs
