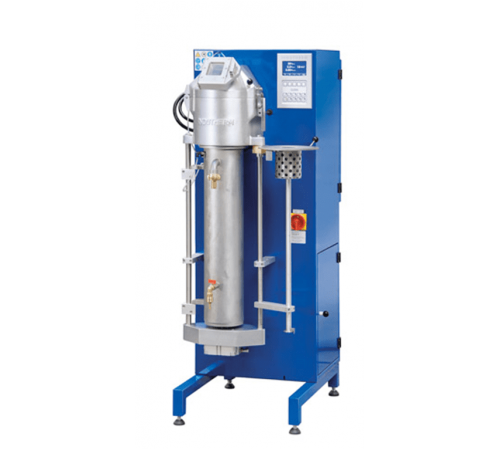

GU-500 Indutherm

These machines are developed especially for granulating of metal bullions into proper grains. They are used with a separate removable
granulation tank (no tank integrated) and are available with crucible sizes from 170 ccm up to 12000 ccm.

The major applications are

• Preparation of alloys out of gold and master alloy…
• Preparation of alloy components…
• Preparation of alloys from components…
• Cleaning up of already casted metal…

…under inert gas atmosphere or under vacuum

Major applications at customer:

• Granulating of metal bullions into proper grains
• Preparation of alloys out of gold and master alloy under protecting gas atmosphere or under vacuum
• Cleaning up of already cast metal under protecting gas atmosphere or under vacuum

Major advantages:

• Excellent mixing of molten metal due to low frequency generator
• Melting under protection gas atmosphere or vacuum
• Alloy mixing because of sealing rod system
• Automatic protective gas control
• Turbo – pressure device for cleaning the complete crucible
• 16 temperature programs
• Stainless steel granulation tank with pneumatic lift
• Easy emptying of the granulating tank

Data:

Dimensions ———–500 x 1400 x 820 mm (W x D x H)

Weight —————- 120 kg

• Power max. / electrical connection –10 kW / 3 x 400 V 50    A, 50 or 60 Hz
• Maximum temperature —————1600° C
• Temperature measurement —–up to 1300° C N type or 1600° C S type thermo couple
• Crucible volume —-245 – 386 ccm ~ 3.6 – 5.7 kggold
• Flask —–max. ⌀ 130 mm / 260 mm h
• Supply: inert gas argon or nitrogen -Yes – at 1.5 to2.0 bar pressure
• Cooling water supply —-2.5 – 6 bar/ at least 200l/h
• Vacuum (optional) —0-20 mbar max., at least 21 m³/h
