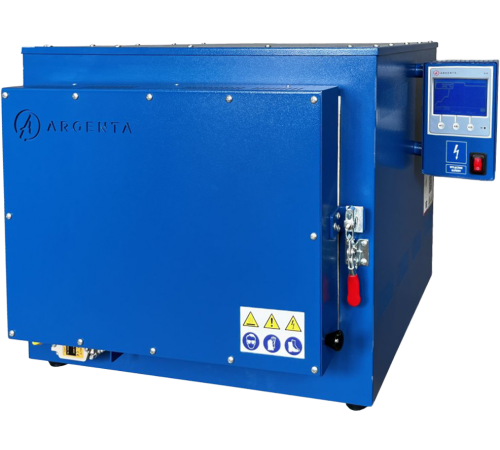

Argenta Blue Furnace APE 800

The APE 800 burn-out oven is intended for heating flasks in a program specified by manufactures of investment powders. There are two types of the oven enclosure: one made of ordinary steel covered in baking enamel and the other one made of stainless steel. Thermal insulation is made from environment-friendly aluminosilicate fibre. The oven features a programmer that executes two programs, each comprising sixteen cycles. A temperature, duration and temperature increase can be set individually for each cycle. The PLC can also execute a program according to input instructions, even when power supply is disconnected and then re-connected.

TECHNICAL DATA:
Rated voltage: 230 V / 50 Hz
Rated power: 2400 W
Maximum operating temperature: 800ºC
Dimensions of the casting chamber: 400mm x 450mm x 270mm
Outer dimensions: 700mm x 640mm x 530mm
Overall weight: 43 kg
