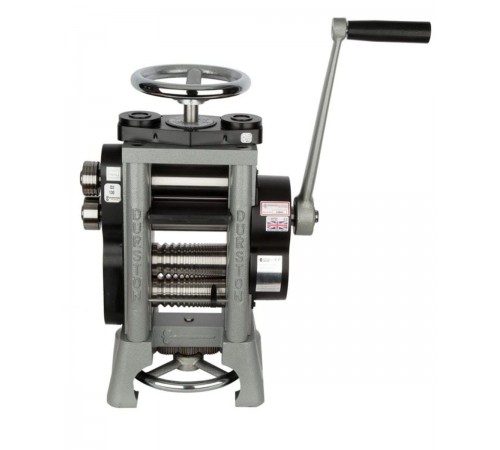

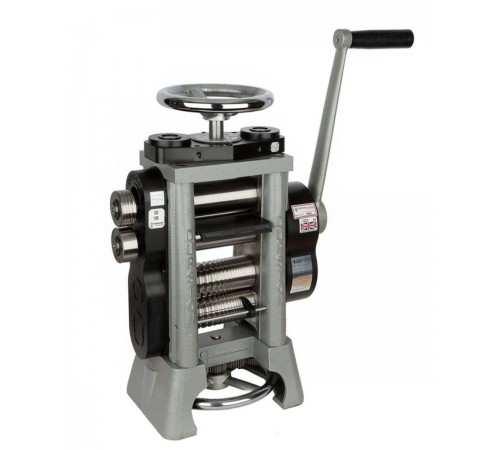

Durston Double D2-130 Rolling Mill

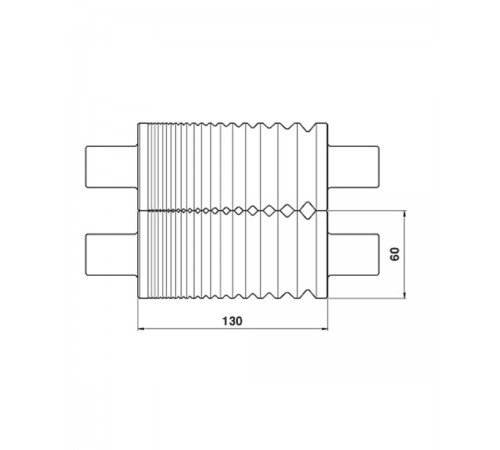

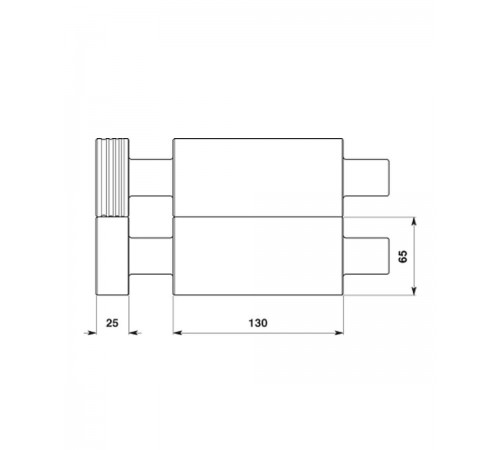

The Double D2 Rolling Mill from Durston is a different mill featuring two sets of rolls; one for flat rolling (having side extension rollers incorporating four half rounds) and the other grooved for the square wire rolling. The excellent gear ratios offer 7-1 load reduction on flat rolling and 3.5-1 for wire rolling, and enables a smooth manual operation with minimal effort. The extra-wide flat area means a full 130mm rolling surface is accessible, while the grooved rollers provider 19 square wire grooves ranging from 10mm to 1mm. The side extensions provide four half rounds in 4, 3, 2 and 1.5 mm. This mill is Durston’s first incorporating roller bearings. For additional safety, all gearing is covered with plastic housing and the large, easy-read calibrated discs and guide plates ensure safe operation through this mill’s long lifetime.
