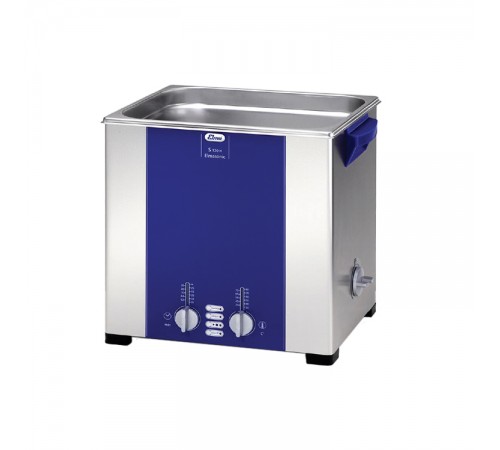

Elma S120 H Ultrasonic

categories

Elma S120 H Ultrasonic

  • Brands Elma
  • Product Code: C2030207
  • Availability: In Stock
Elma S120 H Ultrasonic Common Process for Ultrasonic Cleaner The Elmasonic S ultrasonic units offer practically every available technical future. After more than 50 years, cleaning by ultrasound in all its complexity has now obtained a new meaning. The new Elmasonic S units support t...

Elma S120 H Ultrasonic

Common Process for Ultrasonic Cleaner

The Elmasonic S ultrasonic units offer practically every available technical future. After more than 50 years, cleaning by ultrasound in all its complexity has now obtained a new meaning. The new Elmasonic S units support the ultrasonic cleaning effect at an optimum. The materials used and the reliable technology prolong the service life of the units. The new design combines more functionality with modern looks. The basis of nearly perfect cleaning processes with ultrasound is the Elma high-performance transducer system with 37 kHz. The sweep function, developed in the Elma laboratories, guarantees a homogeneous sound field distribution by way of continuous shifting of the sound field maxima. The degas function available on the new units accelerates very efficiently the degassing process in the cleaning liquid, particularly in freshly mixed baths. When used in tough permanent operation you will find that the new units with their functional design fully meet the demands of any cleaning task.


Specifications



Ultrasonic frequency

37 kHz

Power consumption

1000 W

Ultrasonic power effective

200 W

Ultrasonic peak performance max.

800 W

Heating power

800 W

External dimensions (W x D x H)

365 x 278 x 321 mm

Tank internal dimensions (W x D x H)

300 x 240 x 200 mm

Basket internal dimensions (W x D x H)

250 x 190 x 115 mm

Max. tank volume

12.75 l

Weight

7.5 kg
